Why a Construction Survey Should Happen Before Concrete Forms Are Placed
Placing concrete forms before a construction survey invites errors that are hard to undo. A construction survey sets the true building lines first, so the former crew has reliable points to work from. Without that control, small mistakes creep in and stack up fast. The smart order is simple: establish the layout, check it, then build the forms.
What Needs to Be Set Before Formwork Starts
Before a form crew lays out the footprint, several controlling points need to exist on the ground. A surveyor establishes these reference points so the crew starts from something solid rather than a fresh tape pull. Each point ties the plan directly to the real site.
The layout usually needs these in place first:
- Building lines that define the outer edges
- Corner points for the structure
- Offsets set back from the work so they survive digging
- Elevations that fix how high things sit
- Reference points the crew can return to later
With these sets, the form crew builds from proven positions. The concrete footprint lands where the plan says it should, not where a guess placed it.
Why a Tape Measure Alone Isn’t Enough
A tape measure feels precise, yet it drifts more than people expect over a full building. Each measurement carries a tiny error, and those errors add up as the crew recreates the layout from plans. Pull enough tapes across a large footprint, and the last corner can sit well off target.
Survey control fixes this by tying the work to established points instead of a chain of hand measurements. Alignment stays true because the surveyor checks it against real reference marks. A tape has its place, but it should never carry the whole layout on its own.
How Layout Keeps Walls and Columns in Line
Structural elements depend on accurate layout more than almost anything else on the job. Exterior walls, footings, columns, and piers all trace back to plan-defined points that the surveyor sets. When those points are right, the structure lines up the way the engineer designed it.
A column that sits a few inches off can throw off everything built above it later. The survey layout acts as the backbone for the entire frame. Get the controlling points correct, and the walls and columns follow into their proper places without a fight.
The Cost of Building Forms Before Checking
Building forms before verifying the layout turns a small problem into a big one. Once labor and materials go into the forms, an error found later means tearing out finished work. That waste hits the budget and the schedule at the same time.
The trouble is that mistakes hide until the check happens. A crew can pour real effort into forms that sit in the wrong spot. A quick verification before committing materials saves far more than it costs, and it keeps the job moving instead of backtracking.
Handing Off the Layout to the Form Crew

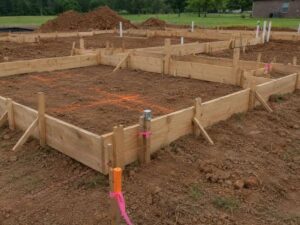

A clean handoff helps the form crew understand which points control the work. The surveyor marks offsets, stakes, and hubs, then shares field notes that explain what each one means. Clear markings prevent the crew from guessing which mark actually matters.
Communication rounds it out, since a quick conversation clears up any confusion on the spot. When the crew knows the controlling points, they build with confidence. A good handoff links the survey and the concrete work into one smooth step instead of two disconnected ones.
A short walkthrough before formwork begins can also help. Walking the site with the surveyor or a lead field technician lets the crew ask questions about specific marks in person. This small step often prevents the kind of misreading that leads to a costly rebuild later in the schedule.
Photographing key stakes and reference points before formwork covers them can also be a smart habit. If a question comes up weeks later, those photos give the team something concrete to check against, rather than relying on memory alone.
Frequently Asked Questions
Should form locations be checked again before concrete is poured?
Often, yes. Many project specifications or quality-control steps call for a second check after the forms are set. Forms can shift during handling, so a final look catches any movement. Plan for that verification as part of the pour-day routine.
What should the crew do when a stake conflicts with the construction plan?
Stop work in that area and ask for clarification. A crew should never move or reinterpret a survey mark on its own. The conflict might point to a plan revision or a disturbed point. Pause, flag it, and let the surveyor or engineer sort out the right answer.
How much does it typically cost to have a form location checked?
The cost depends on the size of the project, the number of points being verified, and how far the surveyor has to travel. Most builders find that this check is small compared to the cost of tearing out and repouring misplaced concrete.
Can weather delay a pre-pour survey check?
Yes. Heavy rain, mud, or extreme cold can make it harder to see stakes or take accurate readings. Some crews build a weather buffer into their schedule so the check happens under conditions that support accurate results.
What tools do surveyors use to verify form placement?
Surveyors commonly use total stations, GPS equipment, and laser levels to confirm that forms match the plan. The specific tools depend on the size of the project, the required accuracy, and the site conditions on the day of the check.
